Description

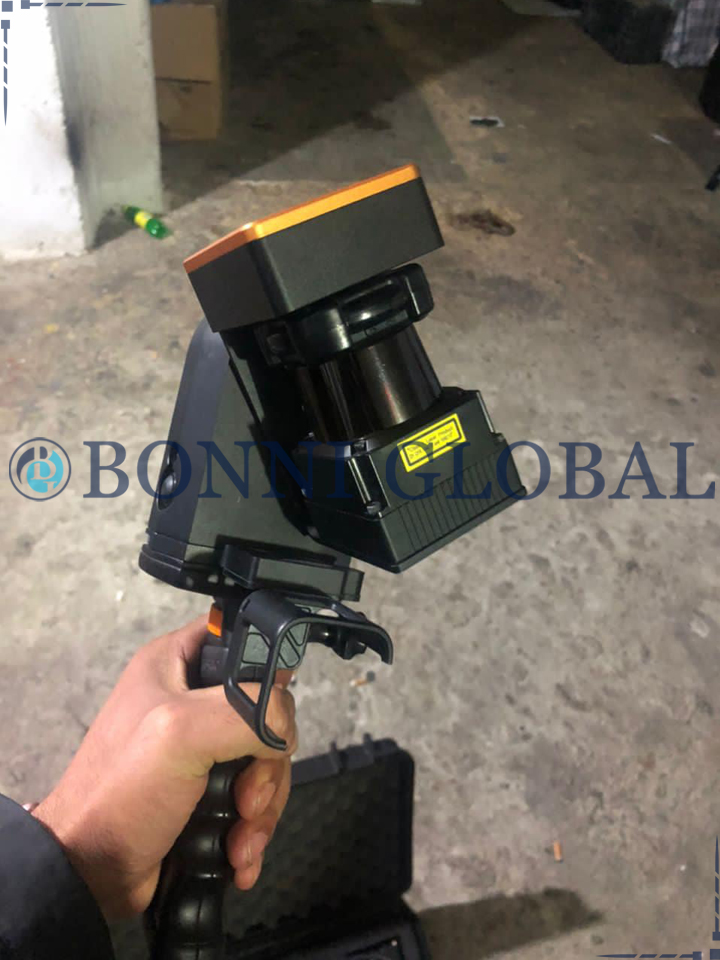

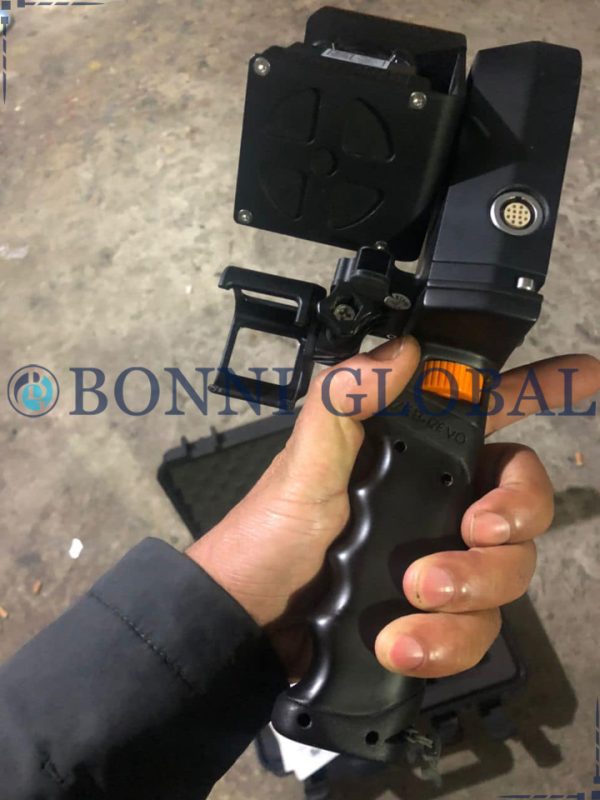

GeoSlam ZEB REVO RT Handheld Laser Scanner is a handheld mapping system which can be used in many environments, particularly indoor, underground or hard to reach areas. Allowing you to scan & process simultaneously, as you walk Real-Time. Optional add-on video camera GeoSlam ZEB-CAM Firefly 8S for the ZEB-REVO. ZEB-CAM incorporates a Hawkeye Firefly 8S action video camera.
The image data collected by the camera can be viewed alongside the 3D point cloud created by the ZEB-REVO and used to extract contextual information. Simply attach the ZEB-CAM to the underside of your standard REVO unit and begin scanning. ZEB-CAM captures live video footage of your survey environment as you walk and scan.
GeoSlam ZEB REVO RT Handheld Laser Scanner Key Features:
- Improved data accuracy
- Real-time SLAM registration
- Graphic user interface
- SLAM quality feedback
- Increased data storage
- Full coverage and the ability to view your data in the field
- Halve your survey time by processing as you scan

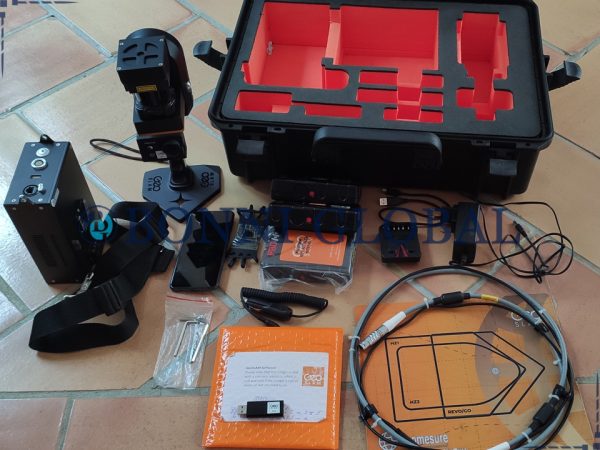

Optional accessories:
- Spare 14.8V battery
- 14.8V battery charger
- Extendable Pole
- Reference Plate
- Spherical Targets
- 3 and 5 meter cables
- REVO Cradle
- Up to 2 more years hardware warranty with GeoSLAM Care package
- All above accessories are currently in stock and ready to ship.
GeoSLAM HUB Software
- Transform your scan data into actionable intelligence using GeoSLAM Hub
- Industry-leading SLAM processing to generate accurate 3D point clouds from mobile data
- Automatic registration of multiple scans and geo-referencing of datasets to control
- Import, view and interrogate data captured from all GeoSLAM mobile mapping devices
- Generate simple and fast 3D measurements and 2D CAD deliverables
- Easily export data for use with all major third-party CAD and GIS software packages
| SPECIFICATION | |
| Maximum range | Up to 30m in optimal conditions; Typical max range 15-20m |
| Points per scan line | 432 (0.625 interval) |
| Field of view | 270o x 360 |
| Scan rate | 100 lines/s; 43200 points/s |
| Scan range noise | ±30mm |
| Laser safety classification | CLASS I Laser Product; (21 CFR 1040.10 and 1040.11) |
| Laser wavelength | 905nm |
| Operating conditions | Temperature 0o C to 35o C; Humidity – non condensing |
| Power supply | 14.8VDC, approx. 5.0A |
| Weight | Scanning head 1.0kg; Carry case and contents 4.1kg |
| Dimensions | Scanning head 80x113x140mm (287mm incl handle); Carry case and contents 470x220x180mm |
| Battery life | Approximately 90 minutes continuous use |
