Description

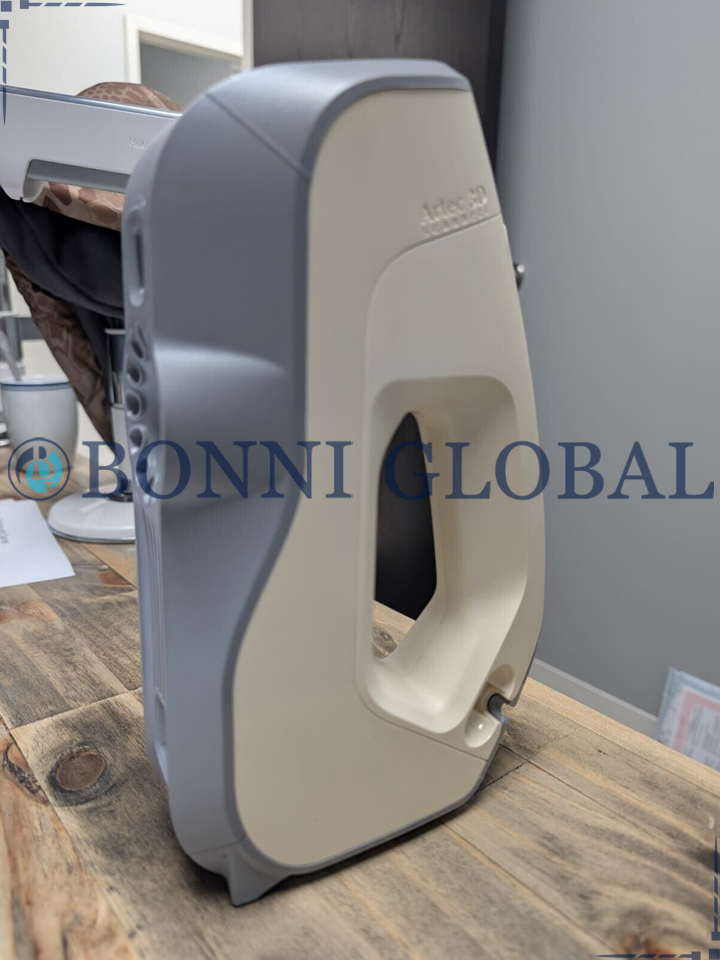

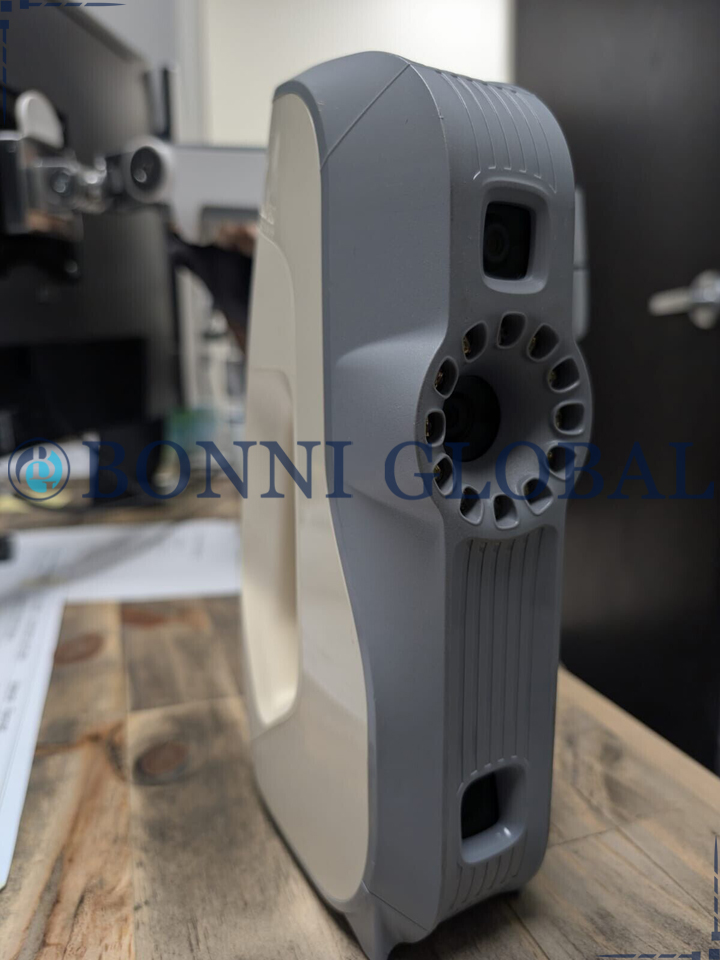

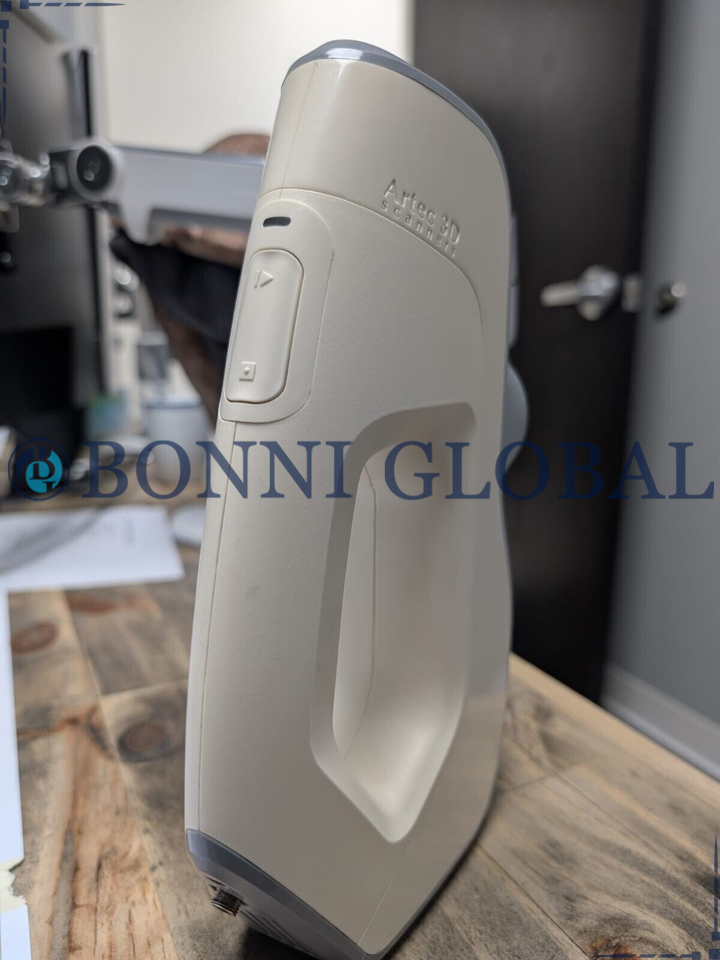

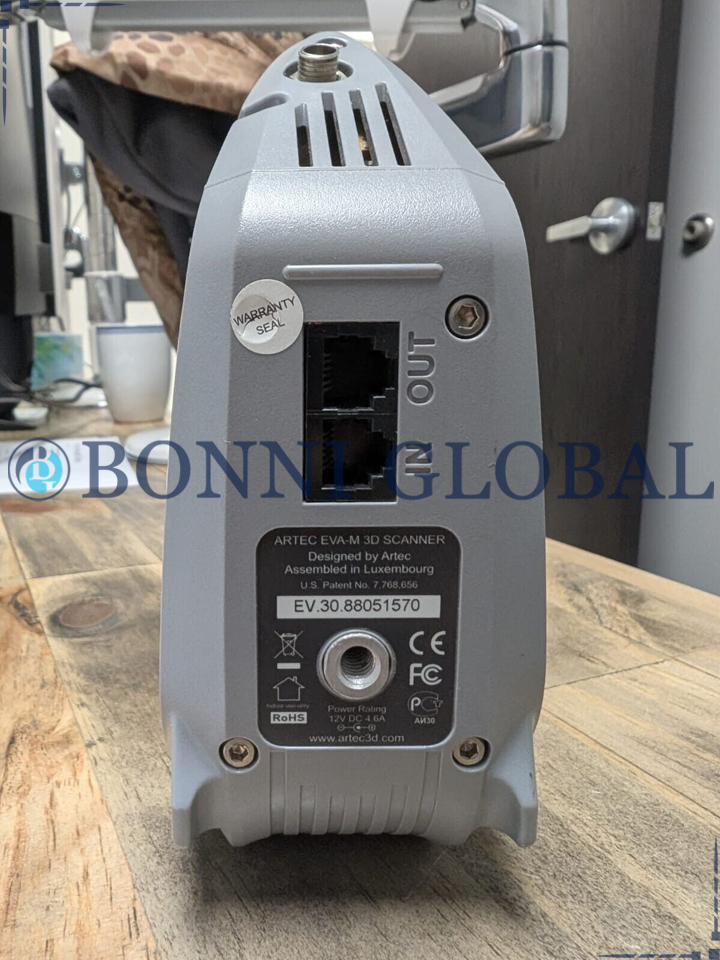

Artec Eva Laser 3D Scanner is an ideal choice for creating fast, textured and accurate 3D models of medium-sized objects such as human breasts, wheels or motorcycle exhaust systems. The device scans quickly, capturing precise measurements in high resolution.
Lightweight, fast and versatile, Artec Eva Laser is our most popular scanner and the market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all-in-one solution for capturing almost any type of object, including objects with black and shiny surfaces.

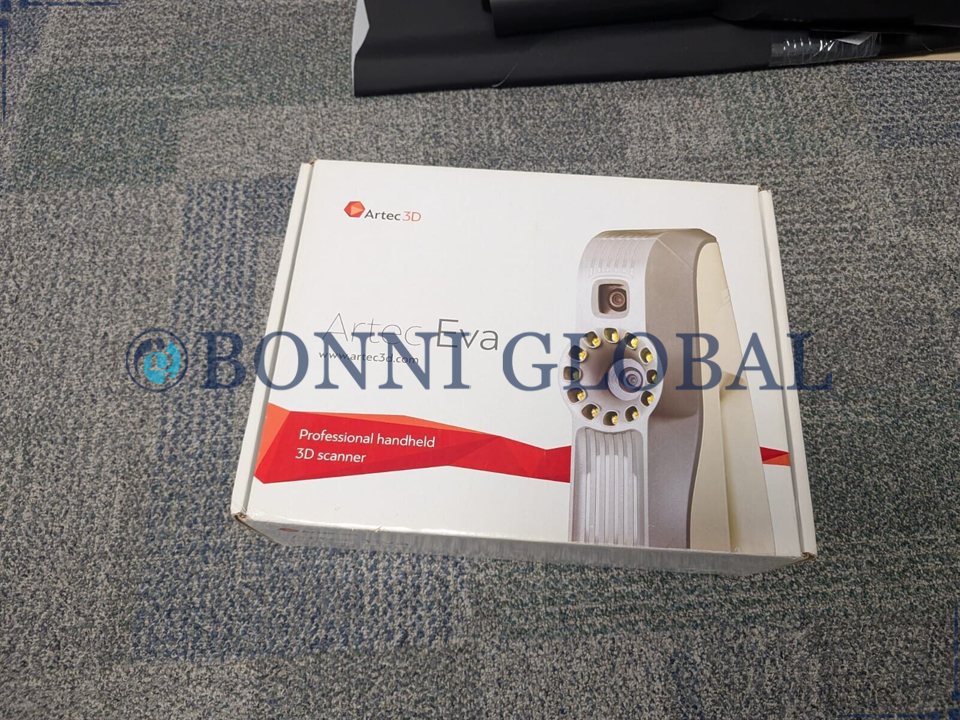

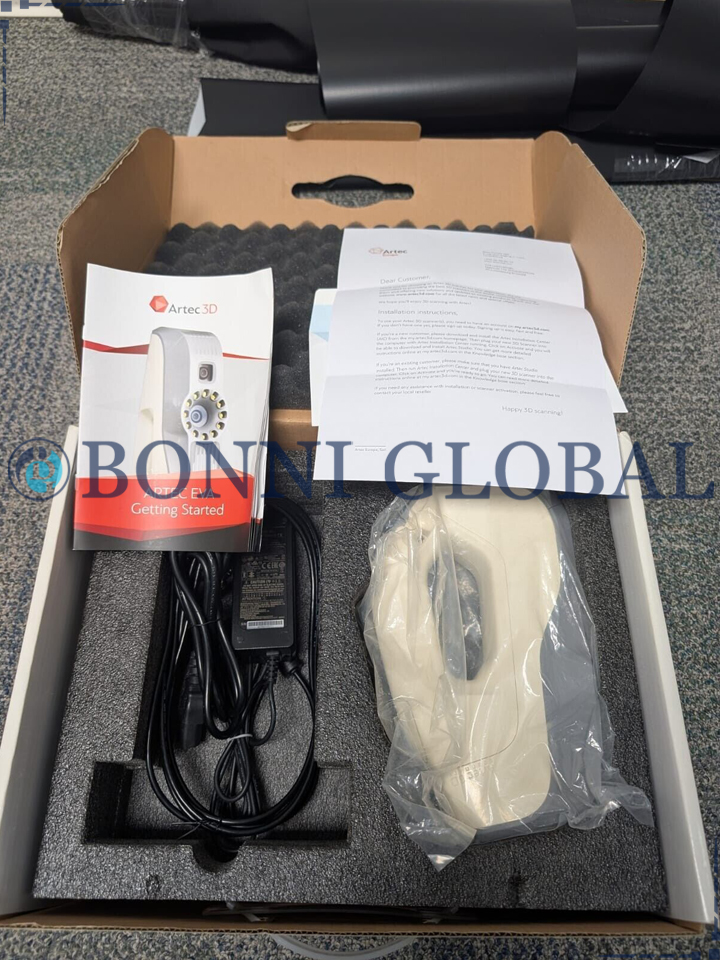

Full color 3D scanner, includes Artec Studio Pro 14 Lifetime License, barely used by one owner. Scan ready condition is very good. The Scanner is like a video camera that captures in 3D! Perfect for the creation of special effects, medical and bio-mechanical research. Eva’s textured models can also be used in industries such as animation, forensics and medicine.
Requirements
- Processor: Intel I5 or I7
- Memory: 12 GB
- Video card: NVIDIA or AMD
- Recommended: NVIDIA GeForce 400 Series or higher, minimum 1 GB memory
- OS: Windows 7, 8, 10 – x64
- Free disk space: 300 MB for installation
| Specification | |
| 3D Resolution | Up to 0.5 mm |
| 3D point accuracy | Up to 0.1 mm |
| 3D accuracy at distance | Up to 0.03% at 100 cm |
| Color | 24 bpp |
| Texture resolution | 1.3 mp |
| Scanning technology | Structured light |
| Structured light source | Flash bulb (no laser) |
| Working distance | 0.4 – 1 m |
| Linear field of view | Closest distance 214 x 148 mm |
| Linear field of view | Farthest range 536 x 371 mm |
| Angular field of view | 30 x 21° |
| Video frame rate | Up to 16 fps |
| Exposure time | 0.0002 seconds |
| Data acquisition speed | Up to 2 million points/second. |
| Multi-core processing | Yes |
| 3D Formats | OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB |
| Measurement format | CSV, DXF, XML |
| Weight | 0.85 kg (1.9 lb) |
| Dimensions | 262 x 158 x 63 mm |
| Power consumption | 12V, 48W |
| Interface | USB 2.0, compatible with USB 3.0 |
| Processing capacity | 40 million triangles / 1 GB RAM |
