Description
Works with the Creaform C-Track 780 with Software. The HandyPROBE, increases the reliability, speed and versatility of the measurement process, whether for metrology or large-scale reverse engineering applications. Creaform C-Track 780 with Software and the HandyPROBE, increases the reliability, speed and versatility of the measurement process, whether for metrology or large-scale reverse engineering applications.
Features Creaform HandyProb :
The HandyPROBE coordinate measuring device provides high-precision measurements (up to 22 µm) and shows significantly better performance than conventional portable coordinate measuring devices in the production area. The portable CMM HandyPROBE is used in the production areas of leading companies, For example, in the automotive, aerospace and industrial manufacturing sectors.
- Insensitive to environmental changes (vibrations, shifted objects, instability of construction or CMM)
- Highly efficient measurement objects without granite or cast iron table
- Ideal for geometry and surface testing
- Scan functions when using with a MetraSCAN 3D scanner
- Size of the objects: 1-3 m; Materials of all kinds
- Up to 10 m expandable measuring volume
- Conveniently portable and wireless

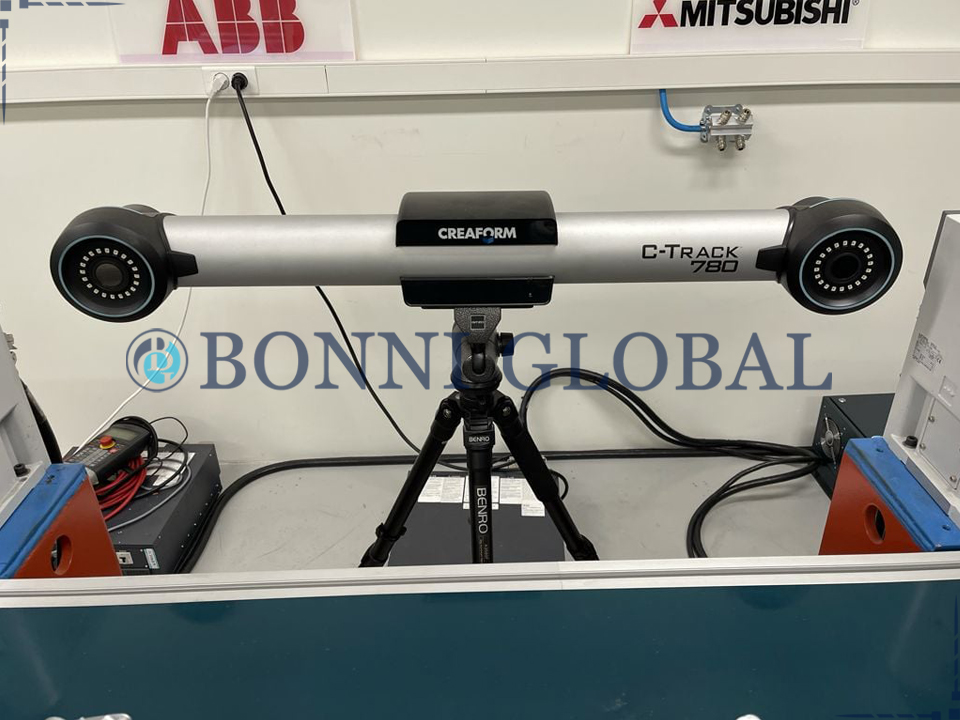

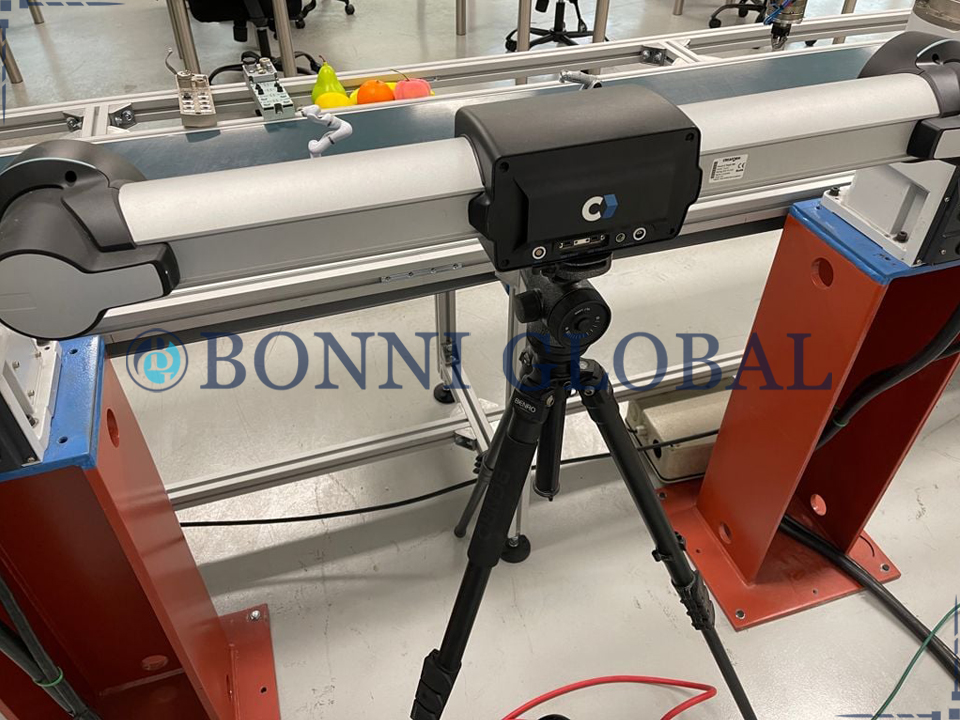

Creaform C-Track 780
The MetraSCAN 3D scanners make it possible to easily and dynamically extend the measurement volume with no loss of accuracy. Compared to other 3D scanners on articulated arms, MetraSCAN 3D scanners allow total freedom of movement for increased productivity and quality.
Creaform C-Track 780 with Software scanner offers increased resolution. It is ideal for projects where geometrical feature definition is key, such as sheet metal and tooling inspection. Work with the C-Track dual-camera sensor. It is also possible to network the MetraSCAN scanners with 2 or 4 C-Track and benefit from the C-Link functionality, which drastically increases the measurement speed and ease-of-use of the system. The combination of the system with the HandyPROBE, increases the reliability, speed and versatility of the measurement process, whether for metrology or large-scale reverse engineering applications.

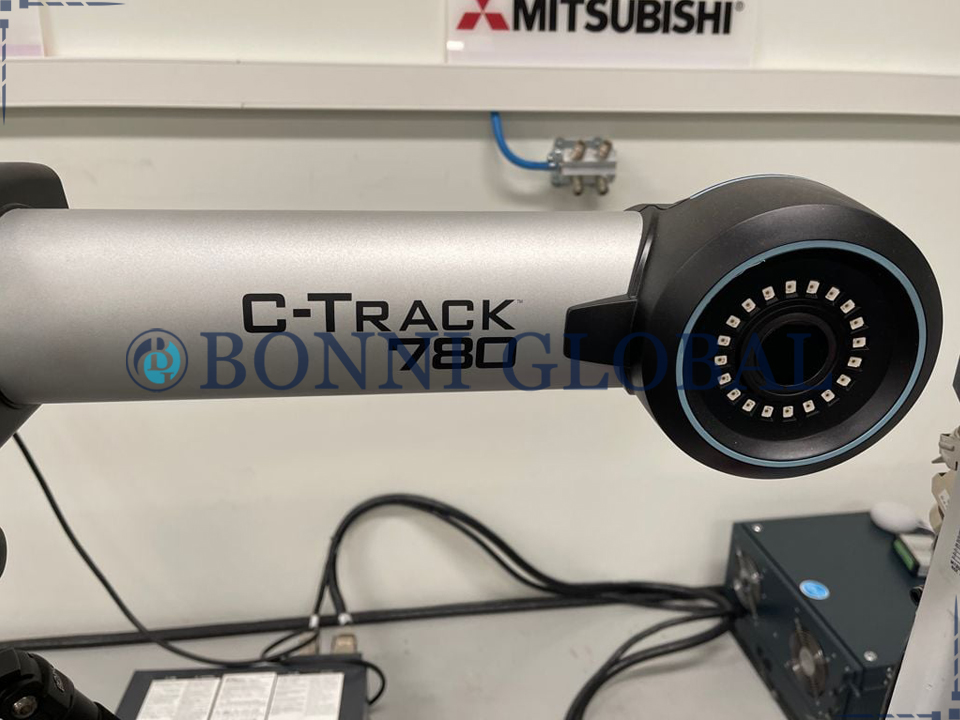

C-Track Dual-Camera Sensors
Creaform C-Track Dual-Camera SensorsThe C-Track dual-camera sensors are fitted with high quality optics and special lighting, enabling them to measure all reflectors within their operating space. In addition to tracking the whole system’s reference model, the C-Tracks ensure the exact localization of the HandyPROBE, perform continuous image acquisition and transmission, lighting of reflectors, management of the exchanges with the computer and storage of the sensor parameters.
