Description

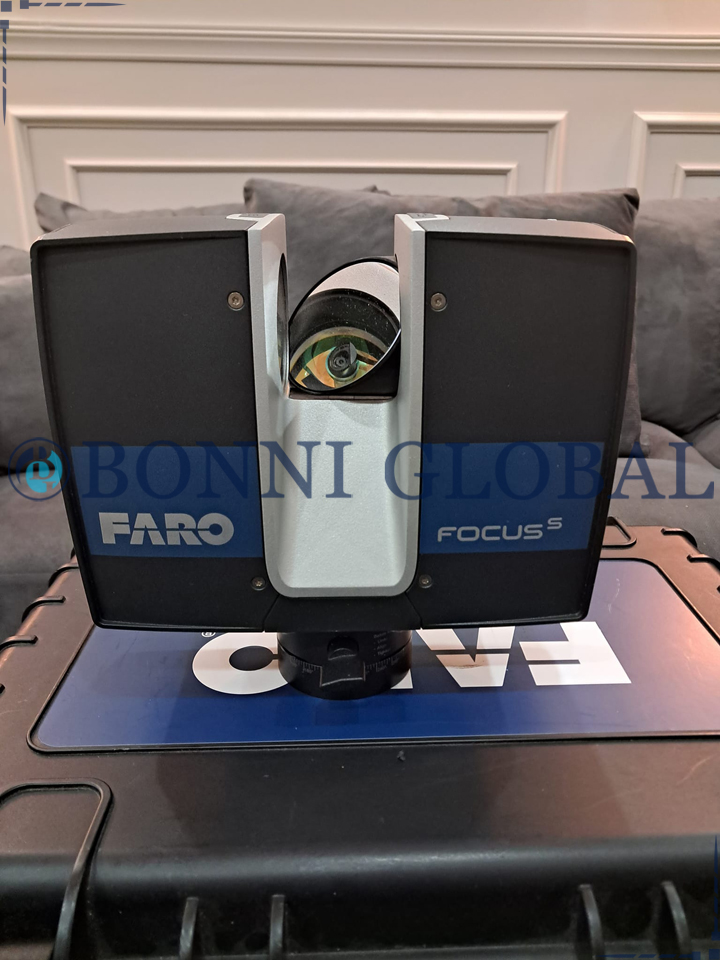

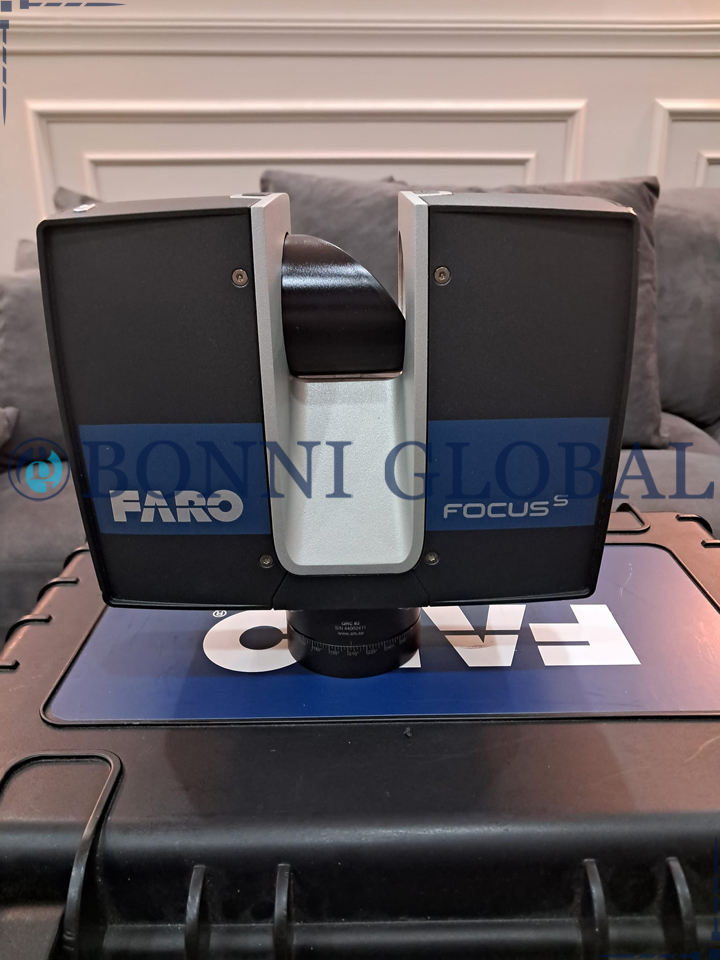

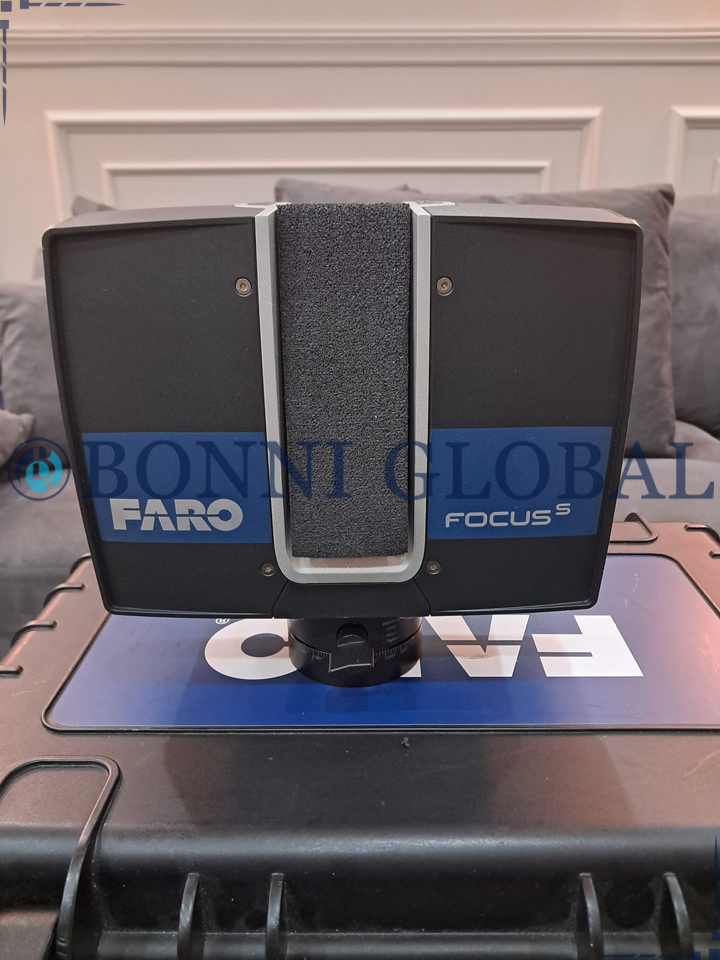

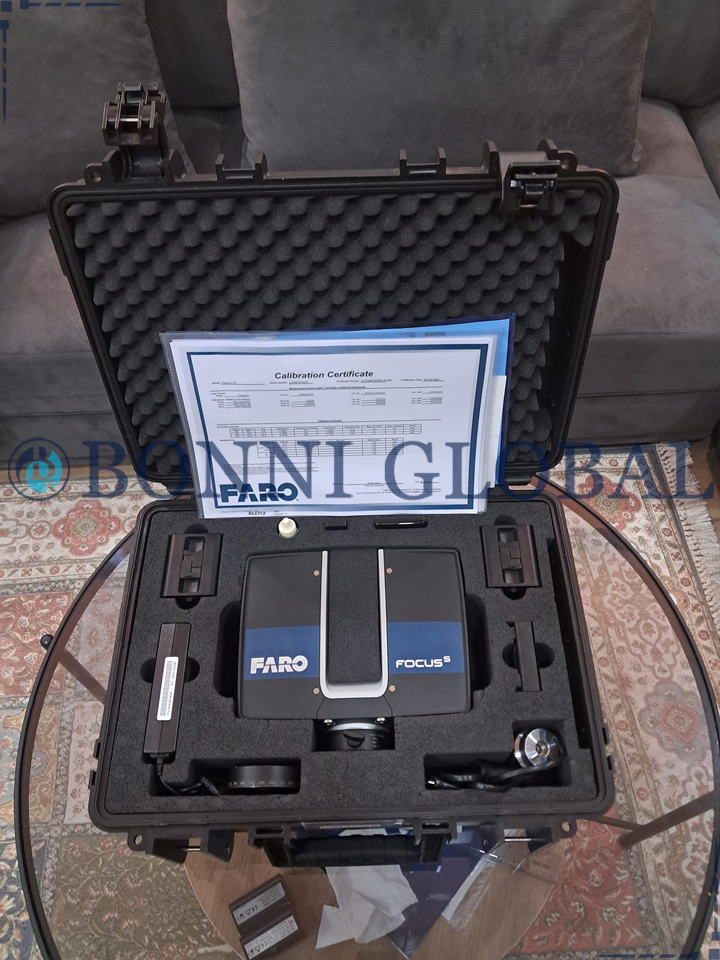

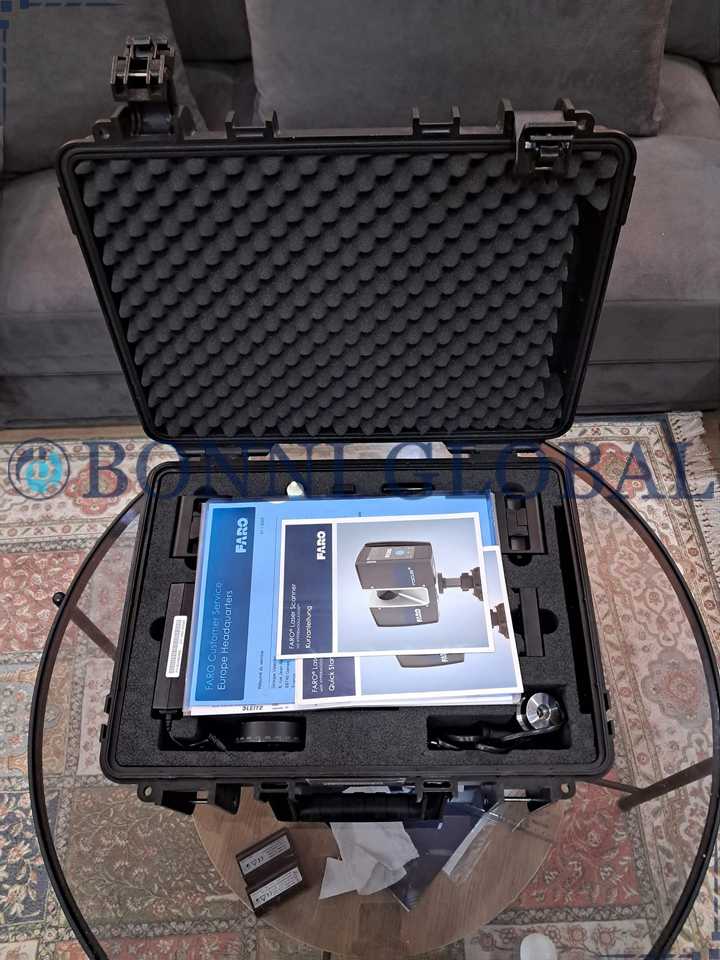

Do you need a highly accurate terrestrial laser scanner for short-range applications? In this case, FARO FocusS70 is the best solution. The Faro Focus S70 HDR 3D Laser Scanner is suited for scanning architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components. Thanks to the integrated color camera and HDR function, FARO Focus S 70 provides high-precision realistic scan results in color.
The Focus S70 HDR 3D Laser Scanner combines all benefits from FARO well-known Focus3D laser scanner series with today’s most innovative features and adds Ingress Protection Rating IP54, an extended temperature range and an increased accuracy regarding distance, dual-axis compensator and angular measurement.

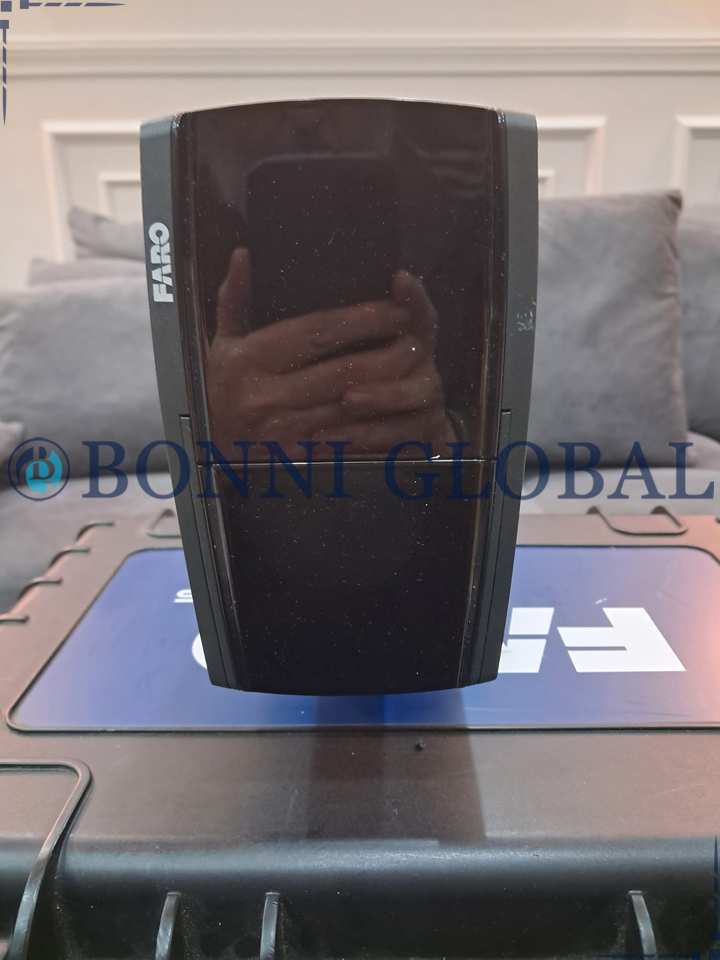

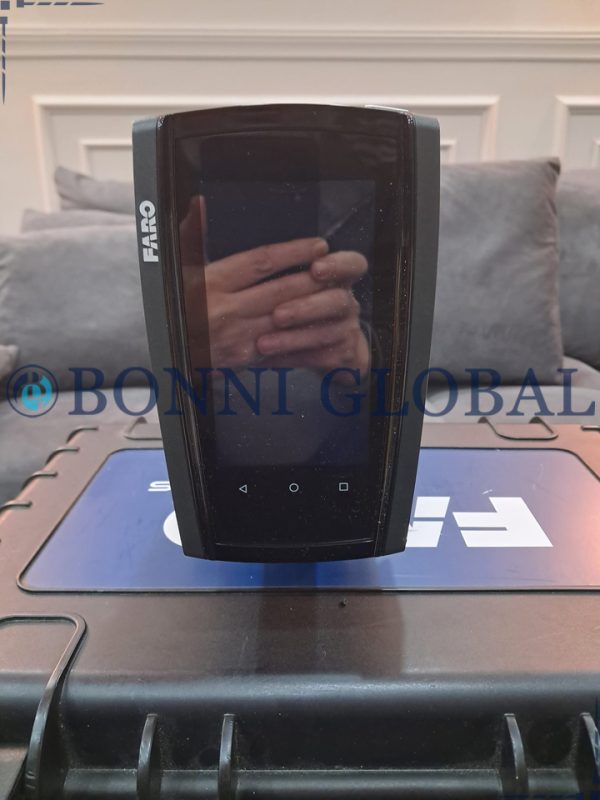

Faro Focus S70 HDR 3D Laser Scanner records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 70m per scan. The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.
The Focus S 70 is a mid-range device offering precise scanning up to 70m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.
Technical Spesification:
- Range: 0.6 – 70m
- High Dynamic Range (HDR) Photo Recording 2x/3x/5x
- Measurement Speed: up to 976,000 points/second
- Ranging Error: ± 1mm
- Sealed Design – Ingress Protection (IP) Rating Class 54
- On-site Compensation
- Accessory Bay
- Angular Accuracy: 19 arc sec for vertical/horizontal angles
- Integrated Colour Camera: Up to 165 mio. pixel
- Laser Class: Laser class 1
- Weight: 4.2kg
- Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
- Size: 230 x 183 x 103mm
- Scanner Control: via Touch Screen Display and WLAN
