Description

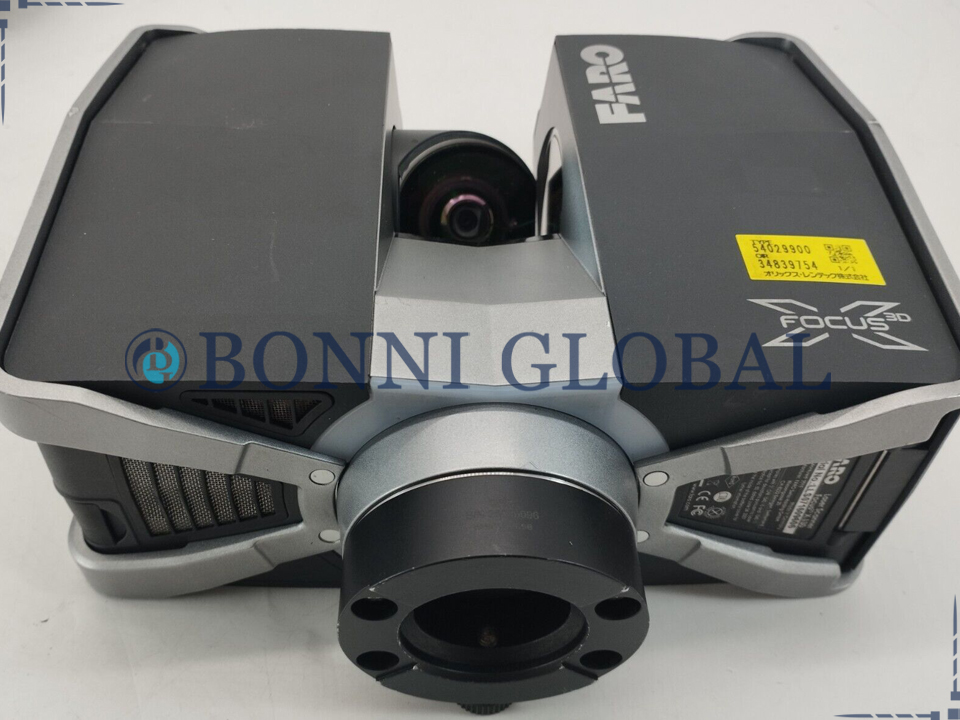

The ultra-portable Faro Focus3D X 130 Laser scanner enables fast, straightforward, and accurate measurements of accident sites, complex structures, crime scenes, facades, production and manufacturing facilities, and large-volume components. Combining the highest-precision scanning technology with authentic mobility and ease-of-use, the Focus3D X 130 offers reliability, flexibility, and real-time views of recorded data.
The 3D scan data can easily be imported into all commonly used soft-ware solutions for accident reconstruction, architecture, construc-tion, forensics, industrial manufacturing, and shipbuilding and other applications.With a battery runtime of 4.5 hours, the laser scanner also has a high level of performance. The Faro Focus3D X 130 Laser scanner light weight, small size, and SD card makes the scanner truly mobile.

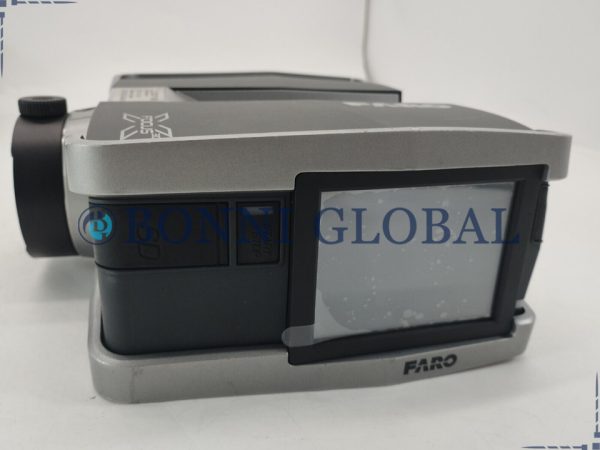

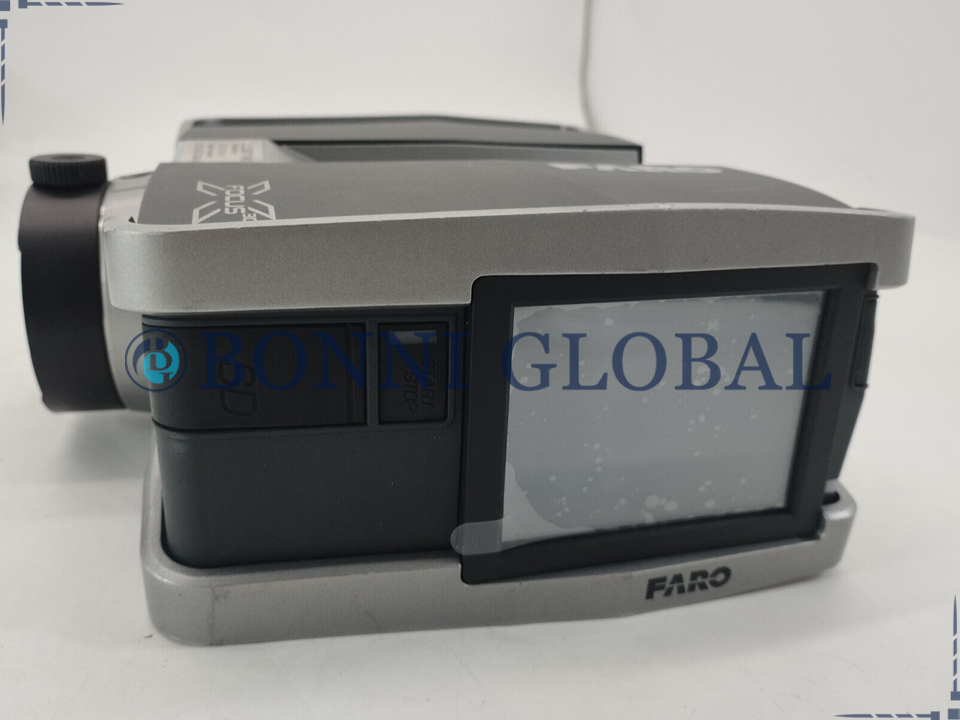

Faro Focus3D X 130 Laser scanner is a compact 3D scanner mounted on tripod. With an intuitive touchscreen display, users can control all of the scanner functions with an easy-to-use interface. Multiple scans from different positions can then be automatically placed to create a cohesive point cloud enabling an accurate measureable 3D mesh of most complex and large structures. 130 stands for the working distance of the 3D scanner, between 0.6 and 130 meters.
Focus3D X 130 HDR
- Range Focus3D X 130: 0.6 – 130 m
- 3x/5x High Dynamic Range (HDR) image recording
- Measuring speed: up to 976,000 points/second
- Linearity error: ±2mm
- Integrated color camera: up to 170 million pixels
- Laser class: Laser class 1
- Weight: 5.2kg
- Multi-Sensor: GPS, compass, height sensor, biaxial compensator
- Dimensions: 240 x 200 x 100 mm
- Scanner control: via touchscreen display and WLAN
features:
- Distance accuracy up to ±2mm
- Range from 0.6m up to 130m
- Noise reduction 50%
- Measurement speed: up to 976,000 points/second
- Integrated colour camera: Up to 70 mio. pixel
- Laser class: Laser class 1
- Weight: 5.2kg
- Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
- Size: 240 x 200 x 100mm
- Scanner control: via touchscreen display and WLAN
