GSSI StructureScan Mini XT concrete Inspection

Description

The GSSI StructureScan Mini XT concrete Inspection is ideal for concrete inspection and evaluation. Easily and accurately locate the position and depth of metallic and non-metallic objects in concrete structures, including rebar, conduit, post-tension cables, pan decking, voids and service utilities.

The GSSI StructureScan Mini XT concrete Inspection offers a 2.7 GHz antenna for superior target resolution and can reach depths up to 60 cm (24 in). With multiple modes of operation, the StructureScan Mini XT is ideal for locating rebar, conduits, post-tension cables, voids and real-time determination of concrete slab thickness, typically used to:

• Find rebar, post tension, conduits, and non-metallic objects
• Measure slab thickness and void location
• Concrete scanning and imaging
• Condition assessment
• Structure inspection

The Mini XT is typically used to:

• Find rebar, post tension, conduits, and non-metallic objects
• Measure slab thickness and void location
• Concrete scanning and imaging
• Condition assessment
• Structure inspection

Enhanced Target Visualization

The StructureScan Mini XT provides multiple modes for data collection and interpretation:

• Scan EZ: With the press of just one button, this mode provides the ideal amount of information with 2D data views for efficient mark-and-go surveys
• Scan Max: Focus mode is designed to simplify the data to better highlight embedments, locate voids and see closely spaced targets
• Scan 3D: This mode helps the user visualize congested areas and non-linear targets

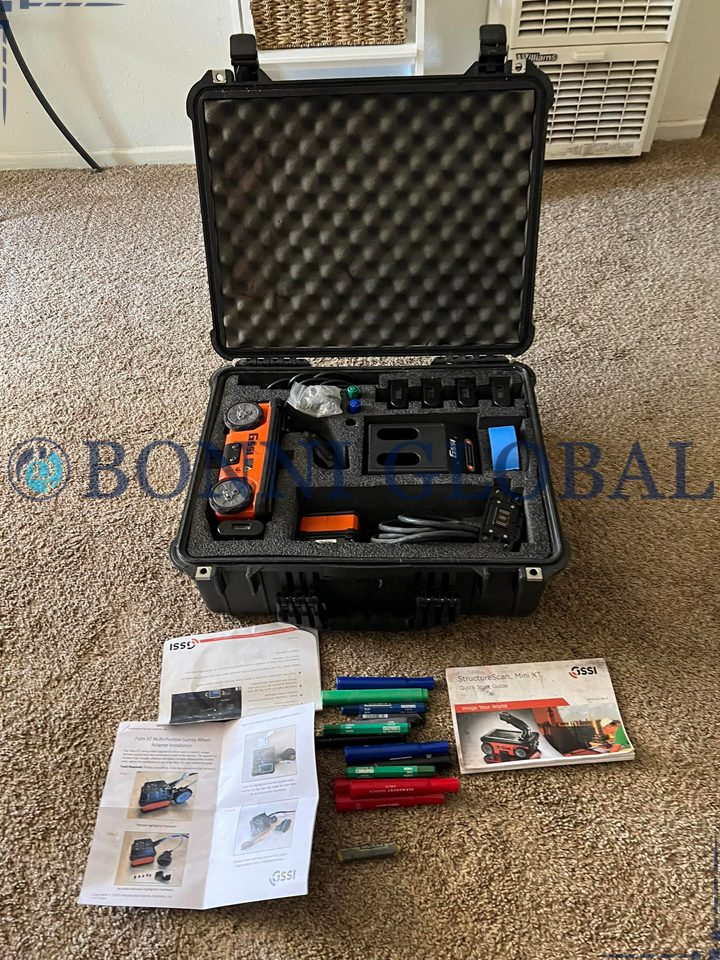

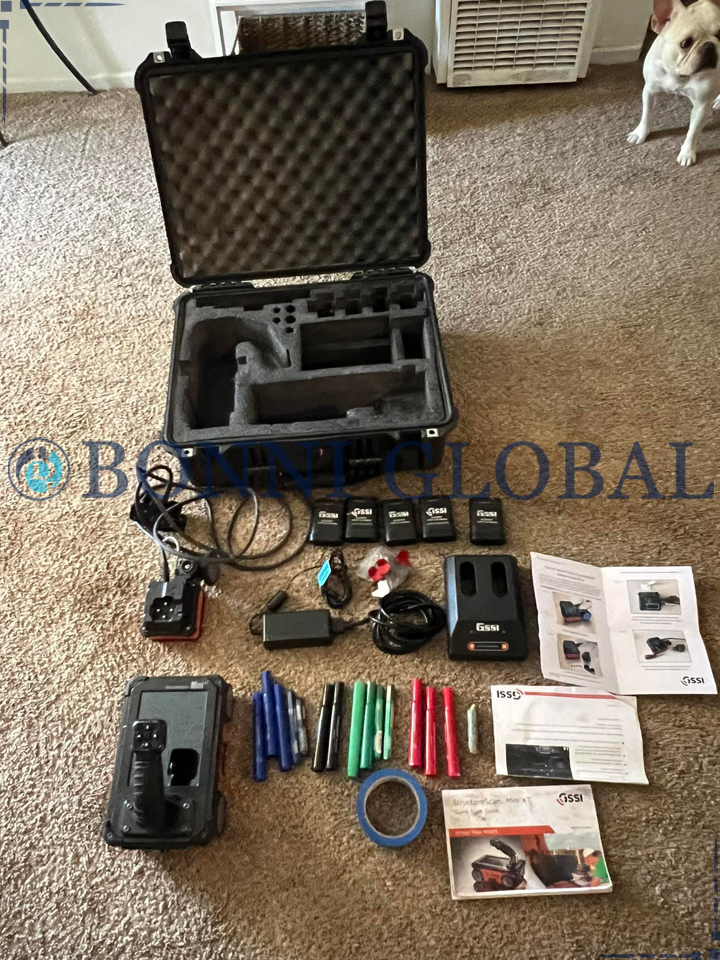

Increase Job Site Efficiency with Mini XT Kit

Today’s professional scanners need a variety of tools to conquer all job site obstacles. For large survey areas the extension pole allows for better ergonomics and ease of use.
