Description

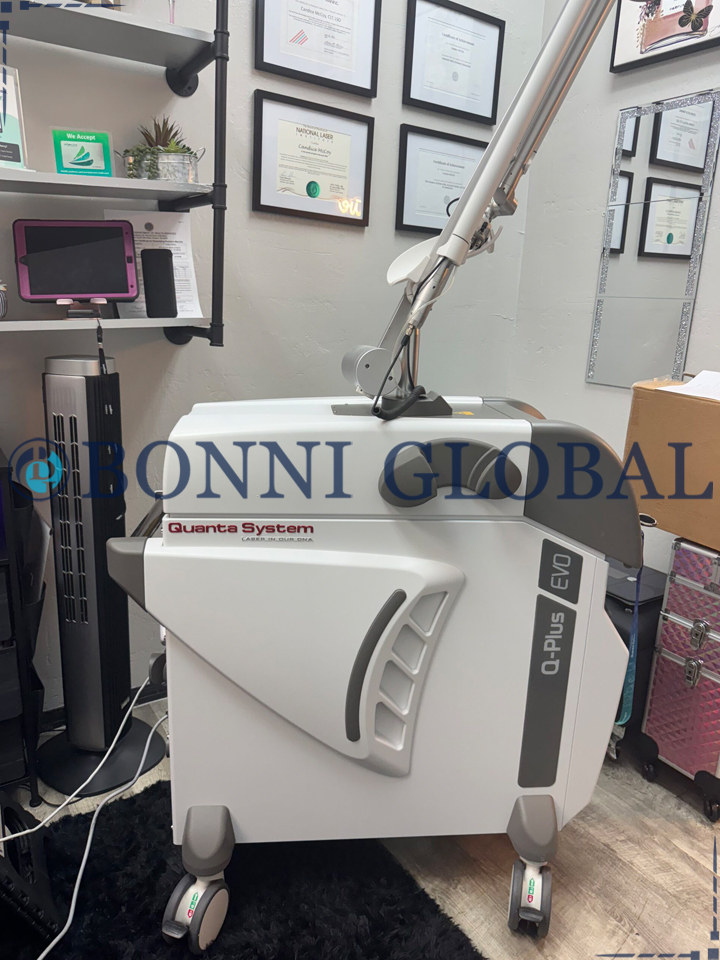

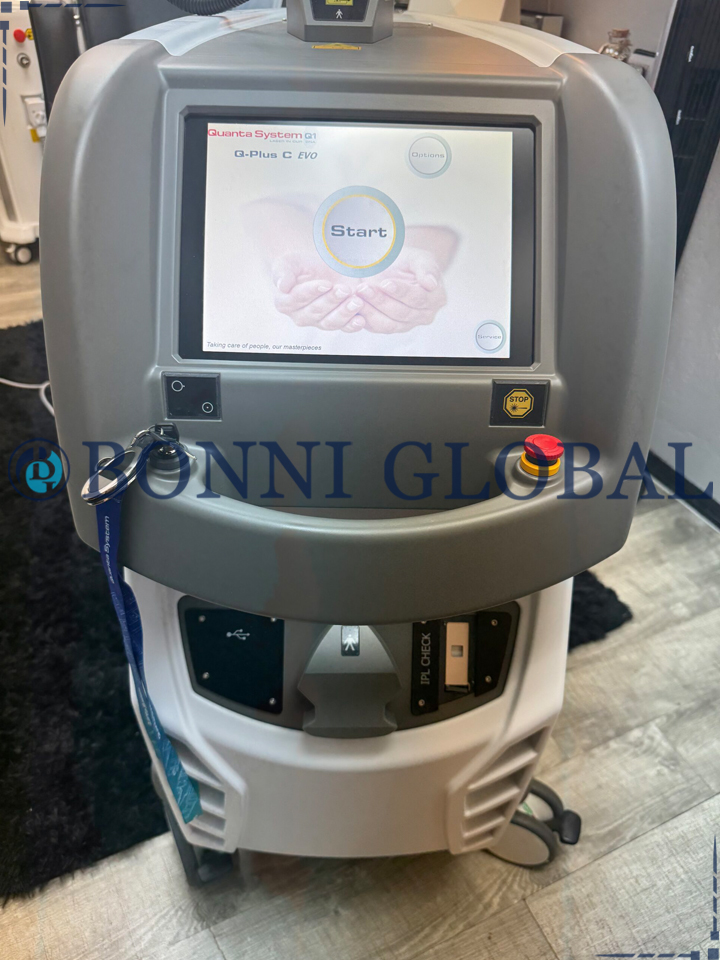

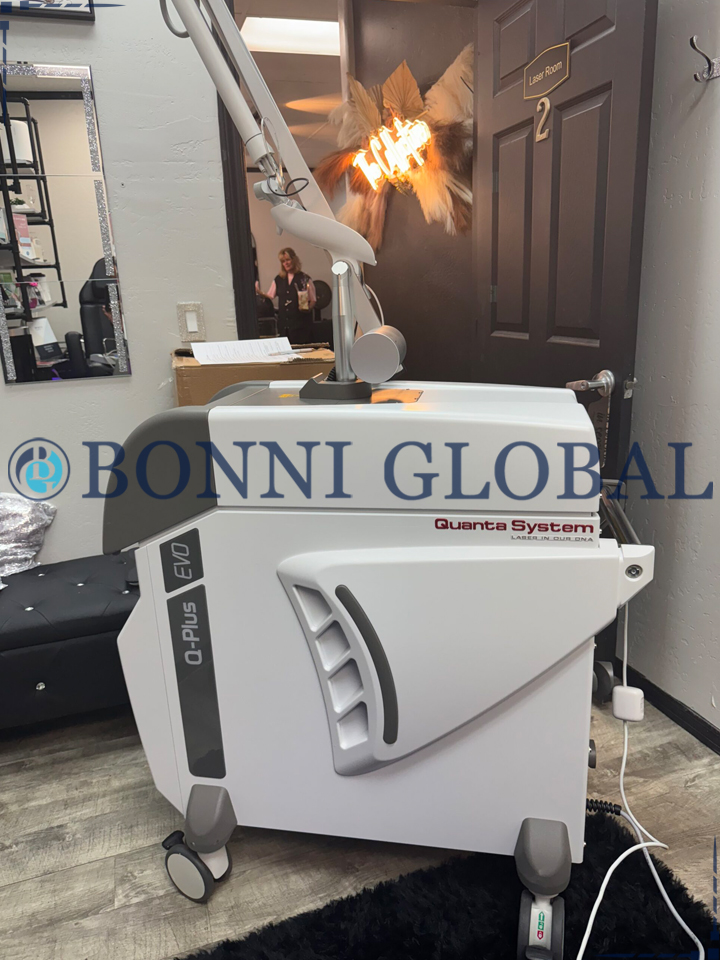

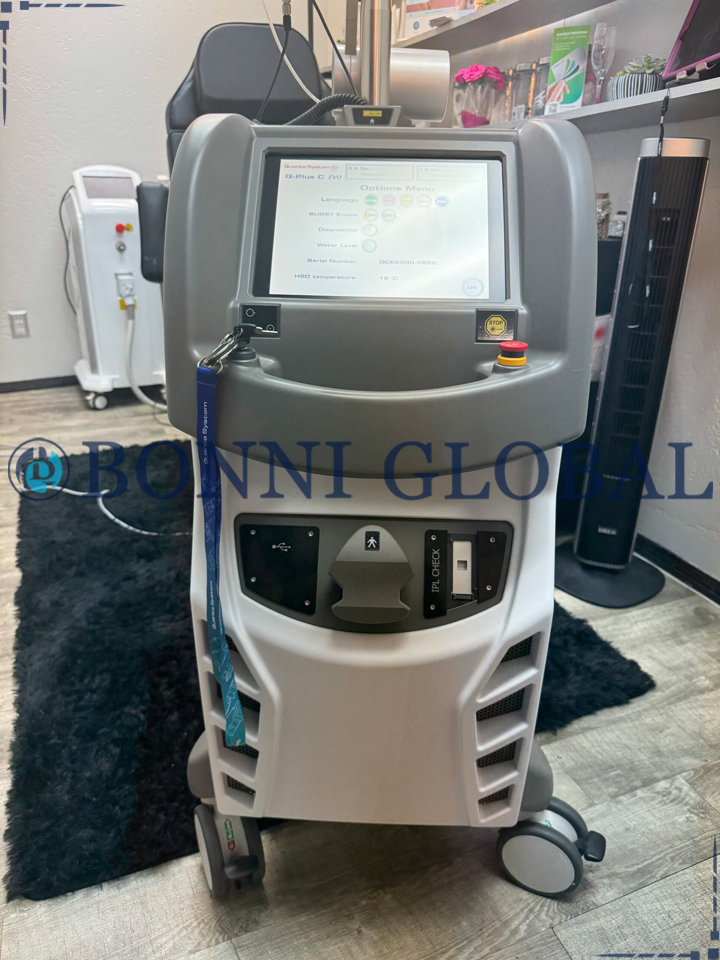

Quanta System Q-Plus EVO
The Quanta System Q-Plus EVO Tattoo Removal Laser delivers a high peak power laser beam in pulses that last a billionth of a second which target tattoo pigments and break the ink particles into smaller fragments. The small particles are then removed by your lymphatic system. Quanta System Q-Plus EVO is based on a powerful Q-Switched laser technology with Ruby laser, which interact photo-acoustically with the tissues. With the combination of optional handpieces such as IPL, Erbium:YAG, it makes this system unique and capable of treating multi-color tattoos and benign pigmented lesions, permanent hair reduction, vascular lesion removal and treatments of aged pigmented skin.
Combines Q-switched Nd:YAG (1064/532nm) & Ruby (694nm)
- Proven, clinical results for all treatable tattoo colours, including greens, blues & reds
- Unique Tri-wavelength laser with one of the fastest repetition rates on the market, variable up to 10Hz
- NEW, patented OPTIBEAM II technology delivers easier more precise coverage. As a result, treatment times can be up to 20% shorter
- NEW Optipulse mode increases energy emission by 50% to make treatment faster, more effective and much more comfortable for clients
Applications of the Q-Plus Laser:
- Benign Vascular Lesions
- Benign Pigmented Lesions
- Wrinkle Treatments
- Permanent Hair Reduction
- Tattoo Removal
- Acne Scars
Powerful Q-Switched Laser Technology
Is the world’s only tattoo removal system to offer THREE true laser wavelengths, incorporating both a Q-switched Nd:YAG laser operating at 1064nm/632nm and a unique Ruby (694nm) laser to eliminate the toughest coloured inks: green, blue and reds. Based on a powerful Q-Switched laser technology that ensures a great versatility in clinical applications. The Quanta System Q-Plus EVO Tattoo Removal three Q-Switched laser wavelengths interact photo-acoustically with skin tissue and different coloured pigments (Ink), leading to them being widely considered the ‘Gold Standard’ for tattoo removal by Dermatologists.
Advantages
- Q-Switched Laser with FASTEST Ruby Laser at 3Hz
- NO Dye Handpiece Consumables for Excellent ROI
- MULTIPLE Wavelengths available in Q-Switched and Pulsed Mode
- THREE Pulse emission modes for maximum versatility
- Ultimate SAFETY and minimal down-time

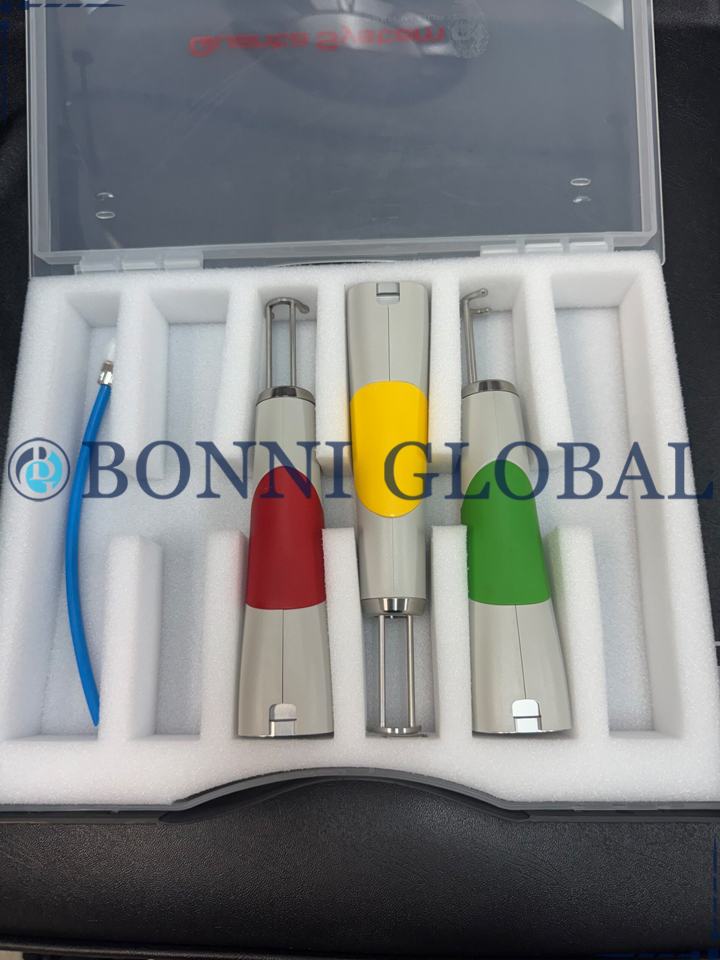

- Optibeam II handpiece with Flat top Square, Round and Fractional Spots
- FRACTIONAL Handpiece for multi-level scar treatments
| SPECIFICATIONS | |
| Laser | Q-Switched Nd Yag and Q-Switched Ruby |
| Wavelength | 1064nm, 532nm, and 694nm |
| Pulse Width | 1064nm = 6ns, 532nm = 6ns, 694nm = 30ns |
| Repetition Rate | 1064nm = up to 10 Hz, 532nm = up to 10 Hz, 694nm = up to 3 Hz |
| Spot Size | 1064nm = up to 5x5mm, 532nm = up to 5x5mm, 694nm = up to 5x5mm |
| Max Fluence | 1064nm = up to 22 J/cm2, 532nm = up to 11 J/cm2, 694nm = up to 25 J/cm2 |
| Electrical Requirements | 230 VAC; 16 A; 50/60 Hz |
| Dimensions | 400 (W) x 900 (D) x 930 (H) mm3 |
| Weight | 90 Kg |
